2018 Gift rc car APM 2.6 Flight Controller w/6M GPS, 3DR 915Mhz Telemetry, OSD, Power Module quadcopter drone with camera parts

2018 Gift rc car APM 2.6 Flight Controller w/6M GPS, 3DR 915Mhz Telemetry, OSD, Power Module quadcopter drone with camera parts Rating: 4.7 out of 5

Best Comparison Product Sale Collections Choice provide Bicycle,RC Cars 2018 Gift rc car APM 2.6 Flight Controller w/6M GPS, 3DR 915Mhz Telemetry, OSD, Power Module quadcopter drone with camera parts. Get Discount Now! Only US $83.66/piece at this time. Hurry buy Now before back to normal price! Normal price US $90.94 or you can Check price now. Dont waste your time. Buy Now only in Flying Angel store Trusted Seller Store!

Economical cost and also free shipping. Allow's get prior to rates increase.

APM 2.6 Flight Controller w/6M GPS, 3DR 915Mhz Telemetry, OSD, Power Module...

APM2.6 and GPS
Introduction:
This is the new APM 2.6 autopilot module. The sensors are exactly the same as with APM2.5+, however this version does not have an onboard compass, which makes this version ideal for use with multicopters and rovers.

The APM 2.6 is a complete open source autopilot system and the bestselling technology that won the prestigious 2012 Outback Challenge UAV competition. It allows the user to turn any fixed, rotary wing or multirotor vehicle (even cars and boats) into a fully autonomous vehicle; capable of performing programmed GPS missions with waypoints. Available with top or side connectors.

This revision of the board has no onboard compass, which is designed for vehicles (especially multicopters and rovers) where the compass should be placed as far from power and motor sources as possible to avoid magnetic interference. (On fixed wing aircraft its often easier to mount APM far enough away from the motors and ESCs to avoid magnetic interference, so this is not as critical, but APM 2.6 gives more flexibility in that positioning and is a good choice for them, too). This is designed to be used with the 3DR uBlox GPS with Compass (see option below), so that the GPS/Compass unit can be mounted further from noise sources than APM itself.

Features
- Arduino Compatible!
- Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally
- Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer
- Onboard 4 MegaByte Dataflash chip for automatic datalogging
- Optional off-board GPS, uBlox NEO-6M module with Compass.
- One of the first open source autopilot systems to use Invensenses 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmels ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.

3DR Radio Telemetry Kit 915Mhz

Descriptions:
- The 3DR Radio telemetry system is designed as an open source Xbee replacement radio set, offering a lower price, longer range and superior performance to Xbee radios. Its availabl in 915Mhz; and in the following configurations: serial board (for the air) and USB (for the ground).
- The radio is a 2-way half-duplex wireless communication system with a standard TTL UART interface, based on HopeRFs HM-TRP data link modules, and custom firmware that improves upon the modules original features and performance.
- The SiK firmware includes a bootloader that permits radio firmware upgrades over the serial interface, and radio firmware with configurable parameters. Firmware upgrades and configuration are fully supported in the APM Mission Planner. Configuration is also possible through AT commands.

3DR Telemetry Kit Specifications
- Very small size
- Light weight (under 4 grams without antenna)
- 915MHz
- Receiver sensitivity to -121 dBm
- Transmit power up to 20dBm (100mW)
- Transparent serial link
- Air data rates up to 250kbps
- MAVLink protocol framing and status reporting
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Support for LBT and AFA
- Configurable duty cycle
- Built in error correcting code (can correct up to 25% data bit errors)
- Demonstrated range of several kilometers with a small omni antenna
- Can be used with a bi-directional amplifier for even more range
- Open source firmware
- AT commands for radio configuration
- RT commands for remote radio configuration
- Adaptive flow control when used with APM
- Based on HM-TRP radio modules, with Si1000 8051 micro-controller and Si4432 radio module
- Please note that it is up to you to make sure you are allowed to use these radio modules in your country. These devices can be used as short range licence expemp devices the UK under ESTI EN300 220, please refer to Ofcom IR2030 document, page 17. You will need to configure the device to comply with your countries regulations

MAVLink-OSD V2.0
Introduction:
- MAVLink-OSD is an Arduino based project and it is fully compatible with original MinimOSD.
- This board can be used for CRIUS AIOP and Arduflyer / ArduPilot-Mega.
- MAVLink-OSD with switching DC/DC stepdown powersupply to maximize efficiency on power system. No more heating problems when using this OSD board.
- Default OSD Firmware is MinimOSD-Extra, written by Gábor Zoltán.
- About how to use the configurator tool to setup OSD function: Click here
- How to setup hardware (original MinimOSD Wiki): click here

Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.
Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircrafts own ESC/BEC for that.

Hardware Features:
- ATMEGA328P Microcontroller
- MAX7456-EUI monochrome on-screen display
- 5V/500mA DC/DC regulator for MAX7456-EUI
- Operating voltage: 5V(FTDI connector) and 12V(Video I/O connector)
- Supported NTSC & PAL
- FTDI connector

Software features:
- Full MAVLink protocol support
- Graphical configurator tool

APM Arduflyer Power Module V1.0
Introduction:
Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements,
all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.

Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry).
It is not designed to power servos. Use your aircrafts own ESC/BEC for that.


Features:
- Max input voltage: 30V
- Max current sensing: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 3A max
- 6P molex cable plugs directly to APM/Arduflyer 2.5s PM connector

Specifications:
Net weight:200 g
Weight:230 g

Package Included:

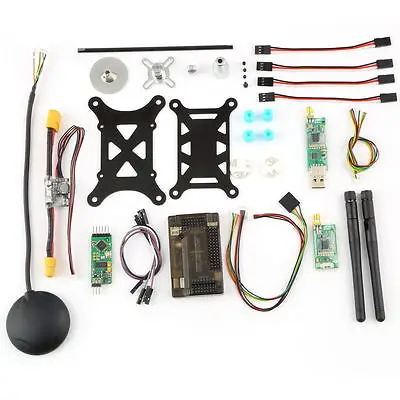

1* APM2.6 Board with case
1* Neo-6M GPS module with compass ic
1* MAVLink-OSD V2.0
1* Power Module
1* 3DR Radio Telemetry Kit 915Mhz
1* Antenna Support
1* USB Cable
1* Shock Absorber
