Best Comparison Product Sale Collections Choice provide Graphics Card,RC Cars,Steampunk Watches Big Promo F18053/6 Mini Pixracer Autopilot Xracer FMU V4 V1.0 PX4 Flight Controller Board for DIY FPV Drone 250 RC Quadcopter Multicopter. Get Discount Now! Only US $66.40/piece at this time. Hurry buy Now before back to normal price! Normal price US $72.97 or you can Check price now. Dont waste your time. Buy Now only in chuanxin luo's store Trusted Seller Store!
Mini Pixracer Autopilot Xracer FMU V4 V1.0 PX4 Flight Controller Board for DIY FPV Drone 250 RC Quadcopter Multicopter 4 Colors optional, Please choose the one you request.

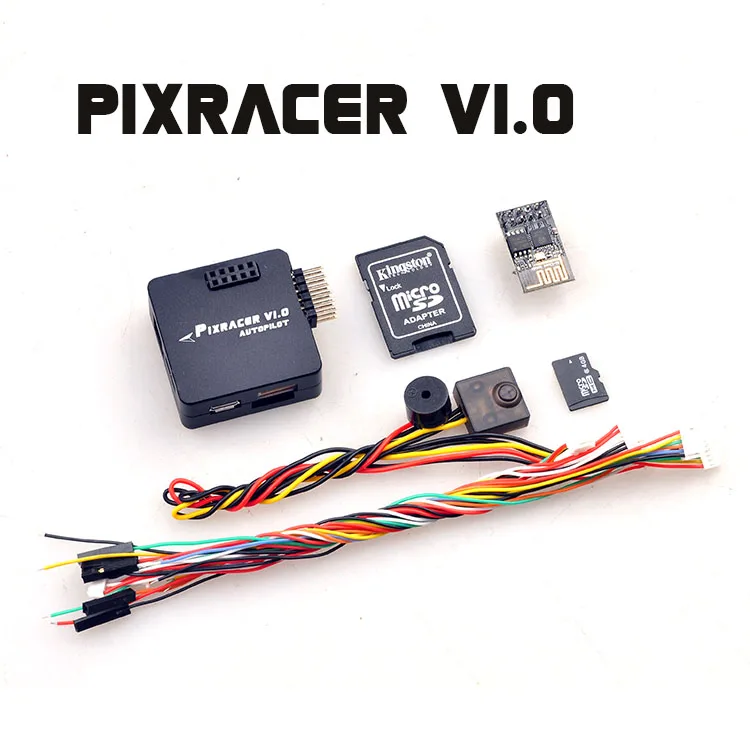

Package Includes:
1pc x Pixracer V1.0 Flight Controller
1pc x CNC Case (black, golden, red, blue selectable)
1pc x safety switch + buzzer
1pc x Power Module Cable
1pc x Serial Cable
1pc x I2C Cable
1pc x Receiver Cable
1pc x WiFi ESP8266 Module
1pc x Micro SD Card + Reader
More info please visit
Discussion:http:/www.rcgroups.com/forums/showthread.php?t=2576614
The new Pixracer (formerly called XRacer) is available now and its fully supported by the Arducopter and PX4 community. Its a genuine open source project, already running with PX 4 stack software / QGroundControl (QGC), as well with Arducopter / Mission Planner (MP).
This is not just another small Pixhawk knock off or derivate, the Pixracer is the first autopilot of the new FMUv4 Pixhawk generation. Its coming with an upgraded Invensense Sensor generation (bye bye tricky LSM 303), a plug in Wifi board and last not least with a 2MB Flash : A real upgrade compared to former versions.
Pixracer specs :
MCU - STM32F427VIT6 rev.3
PCB dimension 36mm*36mm
FRAM - FM25V02-G
LDO Ultra low noise LDOs for sensors and FMU
MPU9250 , ICM20608 , baro MS5611, mag HMC5983
Connectors - GPS+I2C, RC-IN, PPM-IN, RSSI, SBus-IN, Spektrum-IN, USART3 ( TxD, RxD, CTS, RTS ), USART2 ( TxD, RxD, CTS, RTS ), FRSky-IN, FRSky-OUT, CAN, USART8 ( TxD, RxD ), ESP8266 ( full set ), SERVO1-SERVO6, USART7 ( TxD, RxD ), JTAG ( SWDIO, SWCLK ), POWER-BRICK ( VDD, Voltage, Current, GND ), BUZZER-LED_BUTTON
MicroSD card reader
RGB LED
Micro USB
WiFi ESP8266 802.11bgn ( Included !)
This popular add on is a very versatile solution,, you might want to check its wiki as well: http:/www.esp8266.com/wiki/doku.php...th-the-esp8266 But don´t be scared, the included WiFi Module is coming ready to go !
JST GH series connectors for easy and robust peripheral connections, DF13 haters will love those !
Dimensions - 36 x 36mm with 30.5 x 30.5mm hole grid with 3.2mm holes
Weight Pixracer - ( include SD and CNC protective case ) 26g
5 kinds of professional flexible silicone cables for almost any peripheral module included.
Power supply - 5-5.5VDC from USB or Power Brick connector.
NOTE! The Power must be between5.0VDC to 5.5VDC!
The VDD_SERVO rail is NOT connected to thePixracer power!
VERY IMPORTANT NOTE!
THE MAX ALLOWABLE TOTAL CURRENT CONSUMPTION FOR ALL PERIPHERALS IS 1A! Dont connect the VCC of servos or HighPower Telemetry/OSD modules.
