Product Description
Specifications:
Integrated Intel®HD Graphics, Support VGA,HDMI,LVDS Synchronous/asynchronous display | |
Provide 1*VGA (Default ), the highest resolution as.1920*1080@ 60Hz | |
1*HDMI the highest resolution as.2560*1600@ 24Hz | |
1* LVDS,support double channel 24BIT (Optional ,Note:VGA and LVDS two choose one) | |
LAN | Integrated 1* Realtek RTL8111F Gigabit Ethernet , Support wake on LAN/PXE |
Onboard 1*RTL87238S WIFI module (Optional) | |
Storage | 1*eMMC,8G/16G/32GB Optional |
1* MSATA slot support WIFI/3G(Optional) module or SSD (Default) ,the transfer rate up to3Gbps | |
Audio | Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out/Power amplifier(Reserve) |
Rear panel I/O | 1* DC 12V Power input |
1* HDMI | |
1* VGA | |
1* RJ-45 Gigabit Ethernet connector | |
1* USB3.0 | |
3* USB 2.0 | |
Front panel I/O | 1* Line out(Green) |
1* MIC(Red) | |
1* Power switch | |
1*HDD LED | |
2*USB2.0 | |
Internal I/O | 2* USB2.0 2*5pin(Optional),touch screen connector |
1* Power amplifier 1*4pin(Optional) | |
1*LVDS 2*15pin(Optional) | |
1* LVDS INVERTER(Screen backlight power supply interface)1*6pin (Optional) | |
1*RS232 serial port 2*5pin(Optional) | |
1*4pin ATX Power input | |
1* SIM card socket | |
FAN interface | Fanless cooling |
BIOS | 64Mb Flash ROM |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Power Input | DC_12V single power supply |
Operating Temp. | -10°C~60°C |
Storage Temp. | -20°C~70°C |
Humidity | 5%-95% (relative humidity; non-condensing) |
Dimension | 132mmx91mm |

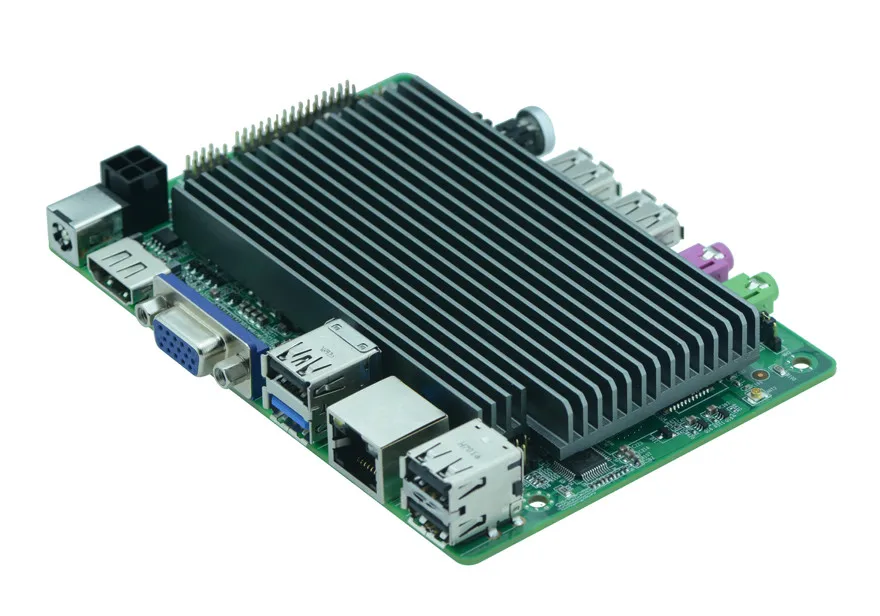

Images of product:
Packing:
