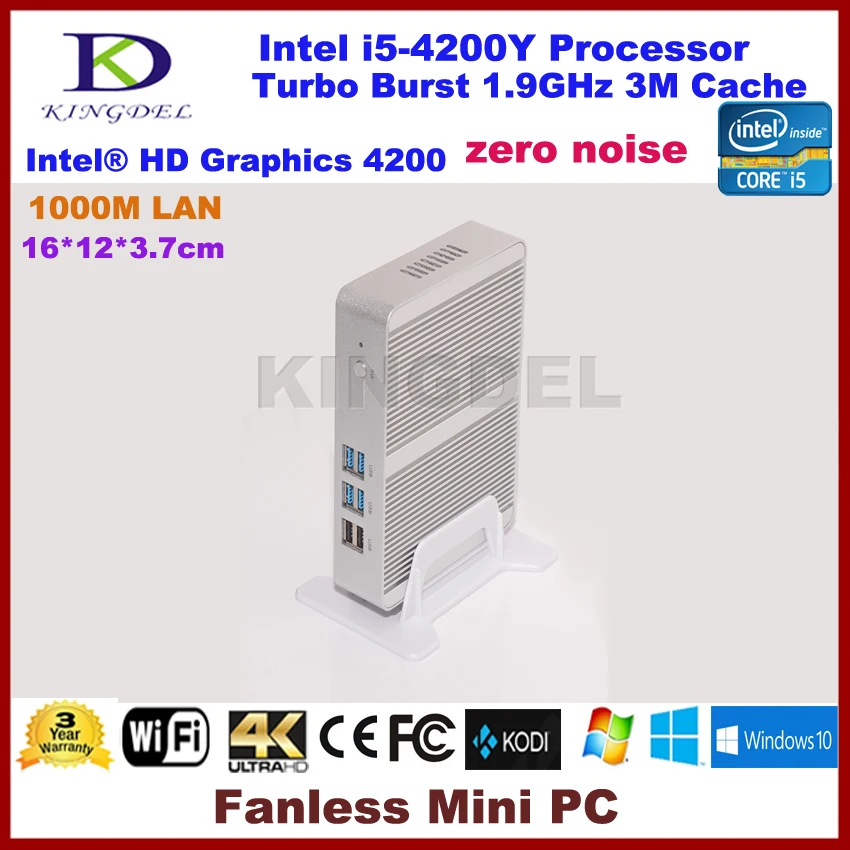

Fanless Mini Itx PC, HTPC
Intel i5-4200Y Dual Core, Turbo Boost 1.9Ghz, 3M Cache
4GB RAM, mSATA3.0 SSD, 1*HDMI, 1*VGA, 4*USB3.0, 2*USB2.0
Intel HD Graphics 4200, 2560*1600 Resolution, 1*LAN, WiFi
Kindly Reminded:
1, This computer works with lower volt at 1.35V instead of normal 1.5V RAM.
2, Warranty is 3 years for Barebone PC, 1 Year for RAM and Storage.
3, The RAM and SSD/HDD are from famouse brand, the RAM is normally Samsung, Elpida, Hynix;
The SSD is normally from Toshiba, Samsung, ADATA, Intel, Lite-on etc. they will be shipped out at random for stock.
4, The default Operating System Windows 10 Pro, it is just for testing, copied and activated but not licensed, please install the licensed one yourself if you like it.
5, If your address is located Remote Area by the Express Company you chose, EXTRA 35USD will be charged for remote area delivery.
6, Please carefully read the announcement on the bottom of this page. It is regarded as you have agreed all listed when you place an order. We wont take responsibility for any problems might caused except the quality problem of the product.
Thank you !
Windows 10 Desktop:
Branded Spare Parts, Boyscott Fake Parts!!
Top Quality, 3 Year Warranty, Rest Assured!!
1, Quality Approval:
2, Product Advantages:
1. Smart: Fanless system, zero noise, smart design, 7*24hrs working continuously.
2. Stable: Intel Haswell+Intel HD Graphics 4200+Metal Case
3, Special: 64 bits computing, turbo boost technology 2.0, Virtualization technology;
Support both mSATA and SATA storage devices together, up to 256GB SSD SSD or 1TB Hardisk large volume;
Support Max 8GB DDR3 RAM, 1 RAM Slot; I/O port: HDMI, 1000M LAN, VGA, 4 USB*3.0, 2*USB2.0, Aduio in/output.
4. Slim: 4cm body thickness, brushed black alloy case
5. Smooth: Support 3D games, and HDMI, 2560*1600 HD streams, full 1080P playback
6. Strong: Working in widely applications: used in office, industries, advertising Display, call center, security, education, banking, home, business, fanancial, projector, Hotel etc.
3, Product Specification:
General | ||
Features | Fanless+i5 CPU+ Metal Case+Competitive Price | |
CPU | CPU Model | Onboard Intel Core i5 4200Y Dual Core Quad thread |
L3 Cache | 3MB | |
Instruction Set | 64-bit | |
Lithography | 22nm | |
TDP | 11.5W | |
Motherboard | Intel SHARKBAY(Intel Haswell-ULT) | |
BIOS | AMI BIOS, ACPI supported, support call on function automatically, Wake-On-LAN | |
RAM | Memory Slot | 1*SD-DDR3 SD RAM Slot |
RAM type | 1.35V, DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333; 8GB Max. | |
Storage | SSD type | Msata |
Capacity | SSD: 24GB, 32GB, 64GB, 128GB, 256GB | |
Operating System | Default: Windows 10, Optional: Windows 8.1, Windows 7, Ubuntu available | |
Audio | ALC662 sound chip, 6-channel; Intel Panther Point HDA | |
Network | Onboard RTL8111DL10/100Mbps/1000Mbps Based T LAN | |
Wifi 802.11.b/g/n(300M) With dual antenna; Optional WiFi+Bluetooth | ||
Video | Intel® HD Graphics 4200 | |
Graphics Base Frequency: 200MHz | ||
Graphics Max Dynamic Frequency: 850MHz | ||
HDMI full screen HD playback | ||
I/O port | ||
Front Panel | 1* Power Switcher with Indicator, 4* USB 3.0, 2* USB 2.0 | |
Backside Panel | 1* DC in, 1* VGA, 1* HDMI, 1* LAN, 1* Mic., 1* Spkr. | |
Internal on Board | 1* Msata 3.0, 6Gbps), 1* mini PCIE for WiFi module, 1* SATA3.0 , 6Gb/s | |
Power & Working Environment | ||
Input | DC100-240V AC/50-60Hz | |
Output | DC 12V/3-6A | |
Power Consumption | 4W-8W | |
Working Temperature | 0-70 centigrade(32F-140F) | |
Storge Temperature | -20-80 centigrade | |
Humidity | 10%-90%(no considensing) | |
Energy Saving | Energy Saving Technology supported, speedstep | |
Virtualization | Virtualization technology supported | |
Product Demention & Details | ||
Size | 160mm*120mmm*37mm | |
Gross Weight | 2KG | |
Computer Case | Full Silver Aluminum Alloy Material | |
What in Box | Mini PC, Power Supply, Power Cable, WiFi Antenna, Bracket Mount, Screws. | |
4, What it can do:
5, Application:
- used as HTPC(Home Theater Personal Computer). Connect HDTV with the HDMI cable, you can enjoy education online and play internet movies or games.
-used as Personal Computer, high configuration and fast speed, zero noise.
- Internet Bar. High speed Gigabit Ethernet and diskless certificate, support 3D games.
- Factory, classroom, bank, supermarket, manager rooms, stores.
- used in Library, reading room, hotel, training, call center, CCTV company.
Product Photos:
