Best Comparison Product Sale Collections Choice provide RC Copters,Bicycle,Mini PC,Steampunk Watches Big Limited DIY 100mm Frame Kit F3+OSD Flight Control 8520 Brushed Motor Q25 VTX+CAMERA Props Battery for RC Mini Indoor FPV Racer Drone. Get Discount Now! Only US $61.20/piece at this time. Hurry buy Now before back to normal price! Normal price US $68.00 or you can Check price now. Dont waste your time. Buy Now only in Xinte Group Trusted Seller Store!
No doubt, this is a genuine goods that provides lots of benefits as well as profitable for you. Equally as you will obtain a ton of money, this goods has the ability to offer a lorry that has to be extremely intriguing for you. In choosing this product, you could do different factors to consider that are offered in the directory. The item magazine you obtain is definitely offer a referral for those of you who intend to find the product you desire.
We accept OEM orders,if you have special request for the item or other items you need to produce,please feel free to contact us,we will try our best to give you best quotation and serves~~~
DIY Mini 100mm Frame Kit F3+OSD Flight Control 8520 Brushed Motor Q25 VTX+CAMERA Props Battery for RC Indoor FPV Racer Drone

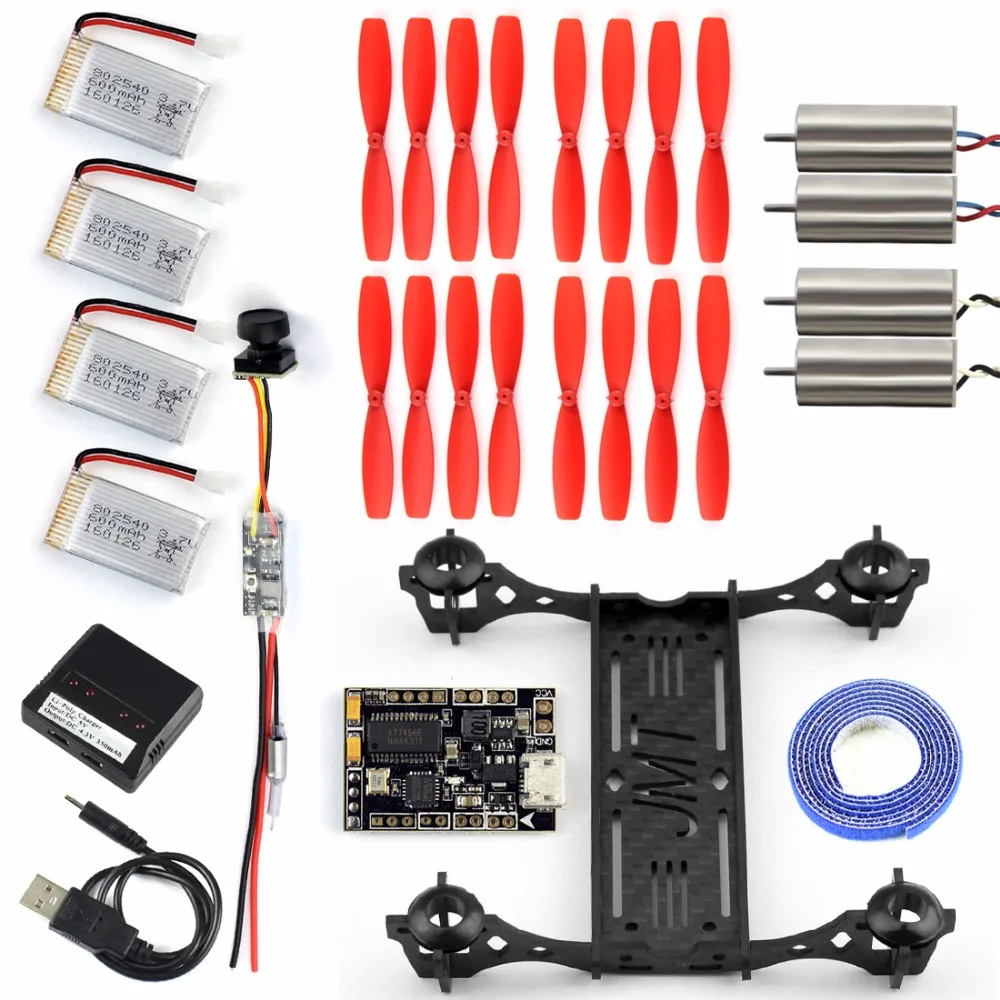

Package Listing :

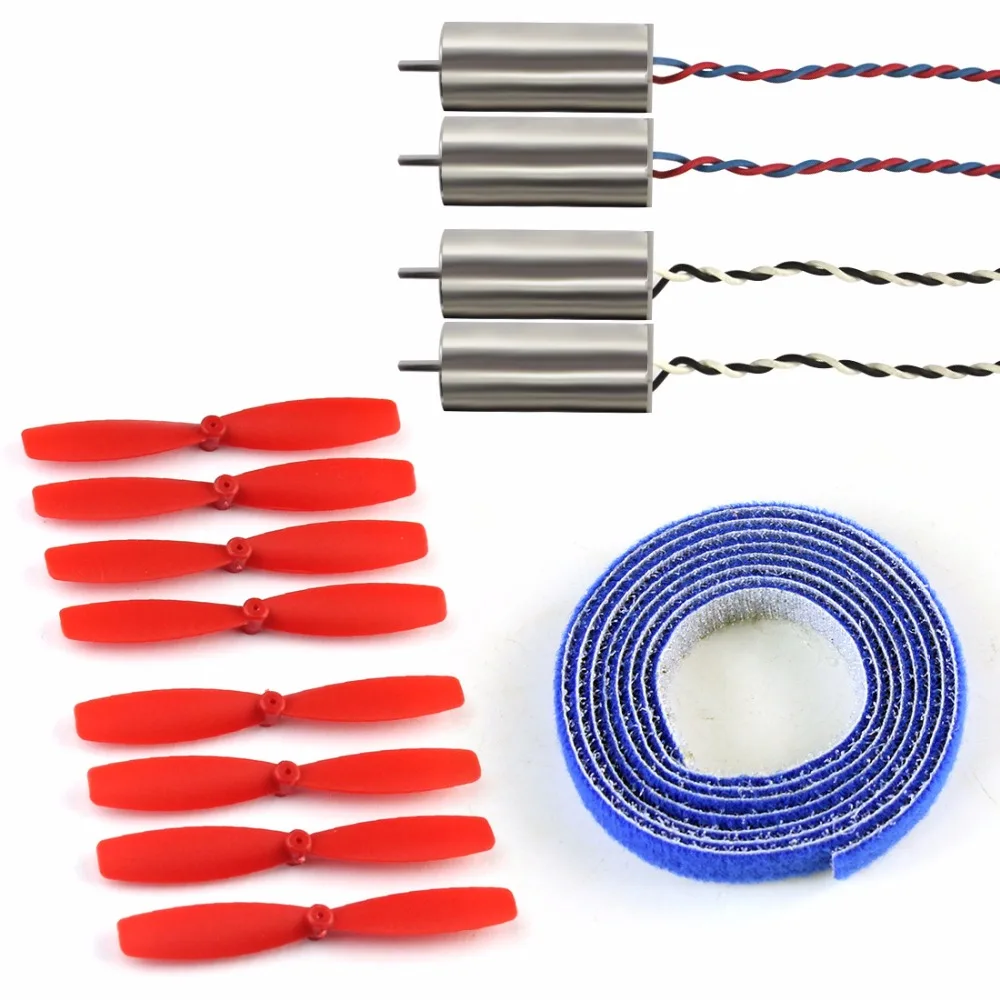

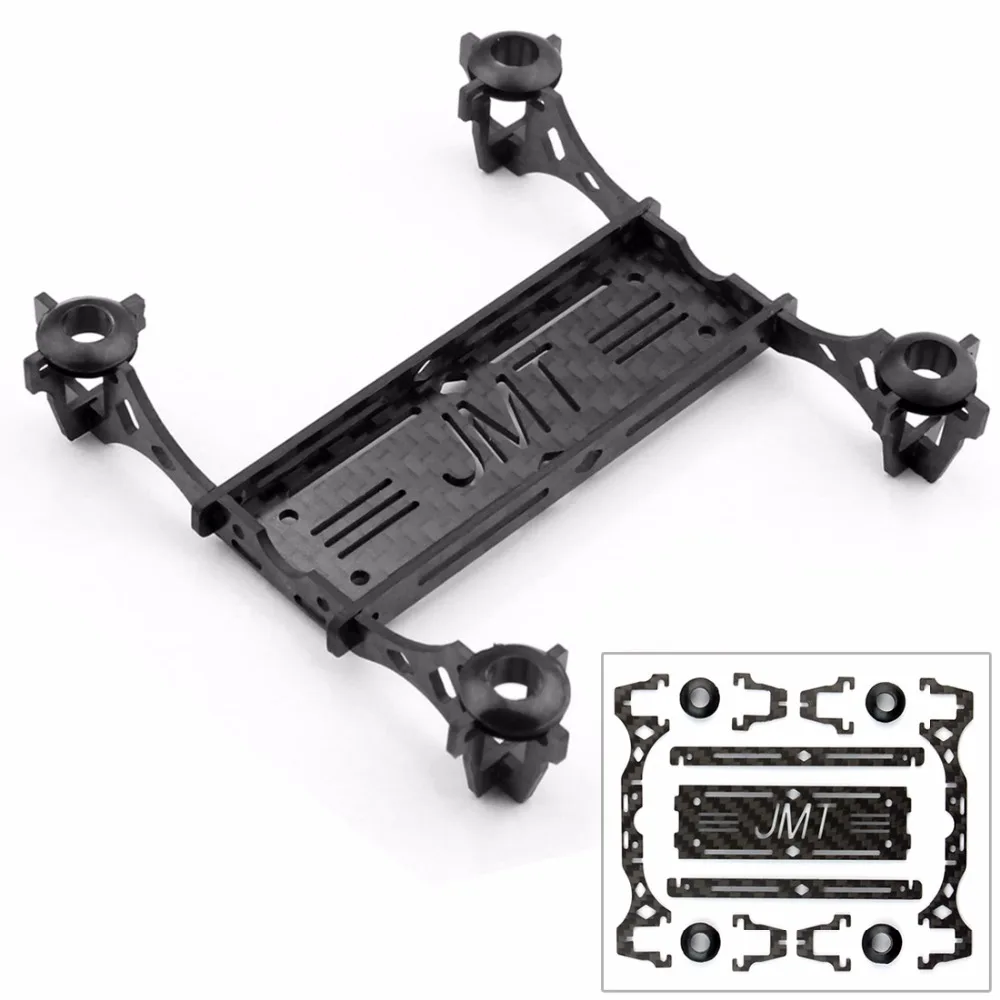

100mm frame Kit *1 8520 CCW Motor *2 8520 CW Motor *2 LANTIAN 60mm CW /CCW propellers * 2pack (1pack have 4 pairs ) Q25 MINI VTX+CAMERA 25mw 16ch Transmitter 800tvl coms Camera *1 4 in 1 3.7V Lipo Battery Charger USB Interface 4 Ports *1 X5-11 600MAH 3.7V Battery *4 F3 + OSD Brush Flight Control Integrated Betaflight OSD *1 Belting *1 Specification of Frame Kit : - Wheelbase: 100mm
- It is full carbon structure, with four motor protector, strong resistance fried It weighs just 12 grams.
- For indoor brushed thruogh motor
- Better protect Four Motors
- Strong resistance to blast, offers perfect hardness
Recommand Configuraiton (not included) :
Flight controller: SP RACING F3_EVO_Brush
Motor: 8520 Brush Motor
Propeller Size: 55mm
Camera: 520TVL Camera
AV Wireless Transmitter: 5.8g 25mw 32 / 40ch
Batterry: 3.7V 600mah 25C Lipo battery
Frsky Receiver, DSM2 Receiver

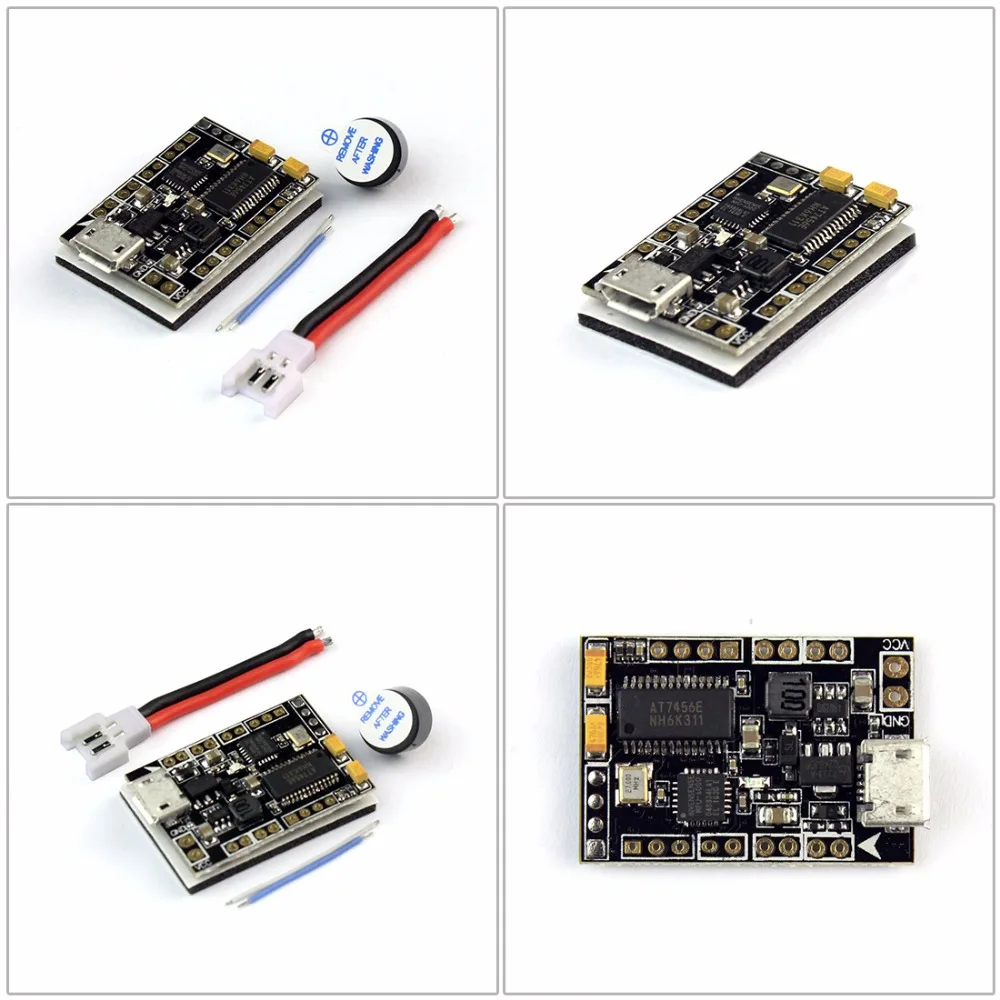

Specification of Flight Control :
- STM32 F303 MCU, Runs Betaflight 3.0.1 firmware
- Target Omnibus
- SPI Sensor MPU6000
- Only 29x19mm
- Weigt:2.7g
Features：
- SBUS/PPM/DSM2/DSMX input
- LED_STRIP solder pin
- BUZZER solder pin
- ACRO/AIR/ANGLE MODE Support
- Built-in OSD(Using F3 MCU controls OSD over SPI bus in DMA mode)
- OSD Configuration has been include in BETAFLIGHT GUI
- With 4 large current NMOS transistors, operating current of up to 10A each
- Radio Stick to control PID Tunes
OSD Stick Commands
Invoking
On startup screen, When disarmed, enter THR MID + YAW RIGHT + PITCH UP
Page Navigation Cursor on PAGE
Next Page: YAW RIGHT
Previous Page: YAW LEFT
Cursor Navigation
UP: PITCH UP
Down: PITCH DOWN
Right: ROLL RIGHT
Left: ROLL LEFT
Changing Values
Increase: YAW RIGHT
Decrease: YAW LEFT
Exiting
Cursor on EXIT or SAVE+EXIT then YAW RIGHT
(Be careful that the cursor disappears for EXIT)
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Big Limited DIY 100mm Frame Kit F3+OSD Flight Control 8520 Brushed Motor Q25 VTX+CAMERA Props Battery for RC Mini Indoor FPV Racer Drone
