Big Special MINI ITX Industrial mainboard ITX-M58_D52 D525 dual-core 1.8G Processor 1*VGA/LVDS 18 Bit /2*SATAII

Big Special MINI ITX Industrial mainboard ITX-M58_D52 D525 dual-core 1.8G Processor 1*VGA/LVDS 18 Bit /2*SATAII comparison sale Rating: 3.7 out of 5

Best Comparison Product Sale Collections Choice provide RC Cars,Keyboard Big Special MINI ITX Industrial mainboard ITX-M58_D52 D525 dual-core 1.8G Processor 1*VGA/LVDS 18 Bit /2*SATAII. Price at this time US $82.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in INCTEL Technology Co.,Limited Trusted Seller Store!

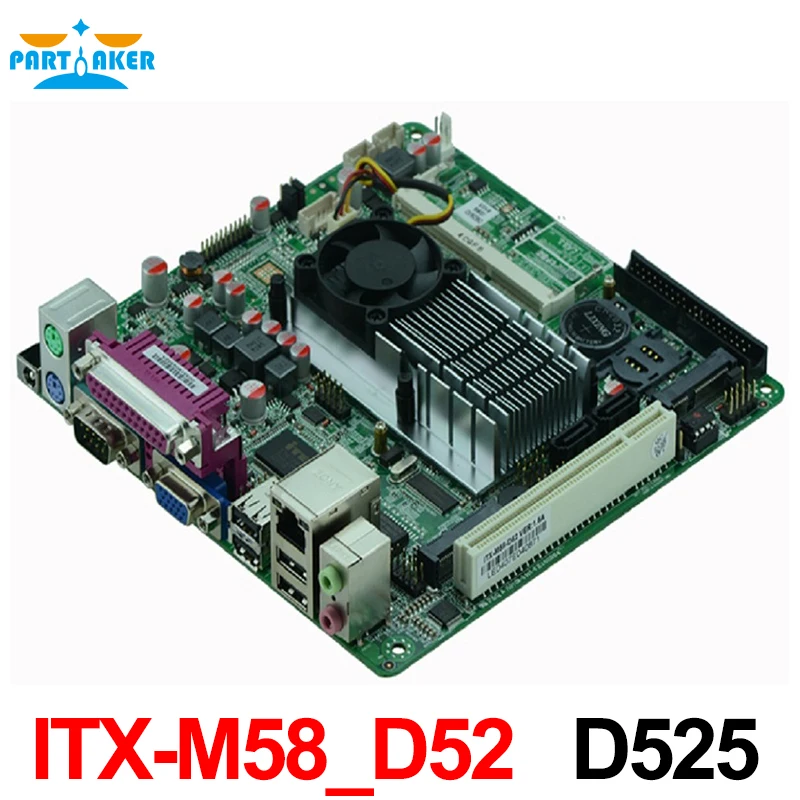

Cheap price with high quality industrial embedded MINI_ITX motherboard ITX_M58_D52 support Intel D525/1.80GHz dual core CPU

Model NO.	ITX-M58_D52 VER:1.1
CPU	Intel® Atom D525 Processor Dual core 1.80G
Chipset	Intel® ICH8M Chipset
Memory	1* SO DIMM DDRIII 800/1066MHz, Max. up to 2GB
Graphics	Intel® GMA3150 Graphics
	Support VGA/LVDS synchronous/asynchronous display
	LVDS supports single 18bit
Expansion Slots	1* Mini-PCIE (Support WIFI/3G)
	1* PCI
LAN	1* RTL8105E 10/100Mbps Ethernet
	Support Wake-on-LAN and PXE function
Storage	2* SATAII 3Gbps
	1* MSATA (support SSD 3Gbps/USB WIFI)
Audio	Integrated Realtek HD ALC662 for 6-Channel output
	Support MIC/Line-out/Line-in
Rear I/O	1* 12V DC_JACK input
	1* PS/2
	1* LPT
	1* COM, the 9th pin supports +5V/+12V charged function
	1* VGA
	4* USB 2.0
	1* RJ_45 LAN
	1* AUDIO I/O (MIC and Line-out)
Internal I/O	1* JVGA1 2*5pin
	1* LVDS 2*10pin
	1* COM, the 9th pin supports +5V/+12V charged function
	1* AUDIO pin (Front Audio interface 2*5pin)
	4* USB 2.0
	1* FP1 (2*5pin Front panel buttons and LED connected)
	1* PS/2
	1* LVDS 1*6pin
	2* PWROUT (Hard drive power connector)
	1* ATX_12V (Can be used as input and output 12V power connector)
	1* SIM
Fun interface	1* CPUFAN and SYSFAN 3pin
BIOS	AMI 8MB DPI Flash ROM
Watchdog	Support hardware reset function (L256, 0~255 seconds)
Power Input	DC_12V Single power supply
Operating Temp.	-10°C~60°C
Storage Temp.	-20°C~70°C
Humidity	0%-95%(relative humidity; non-condensing)
Dimension	170mm x 170mm
