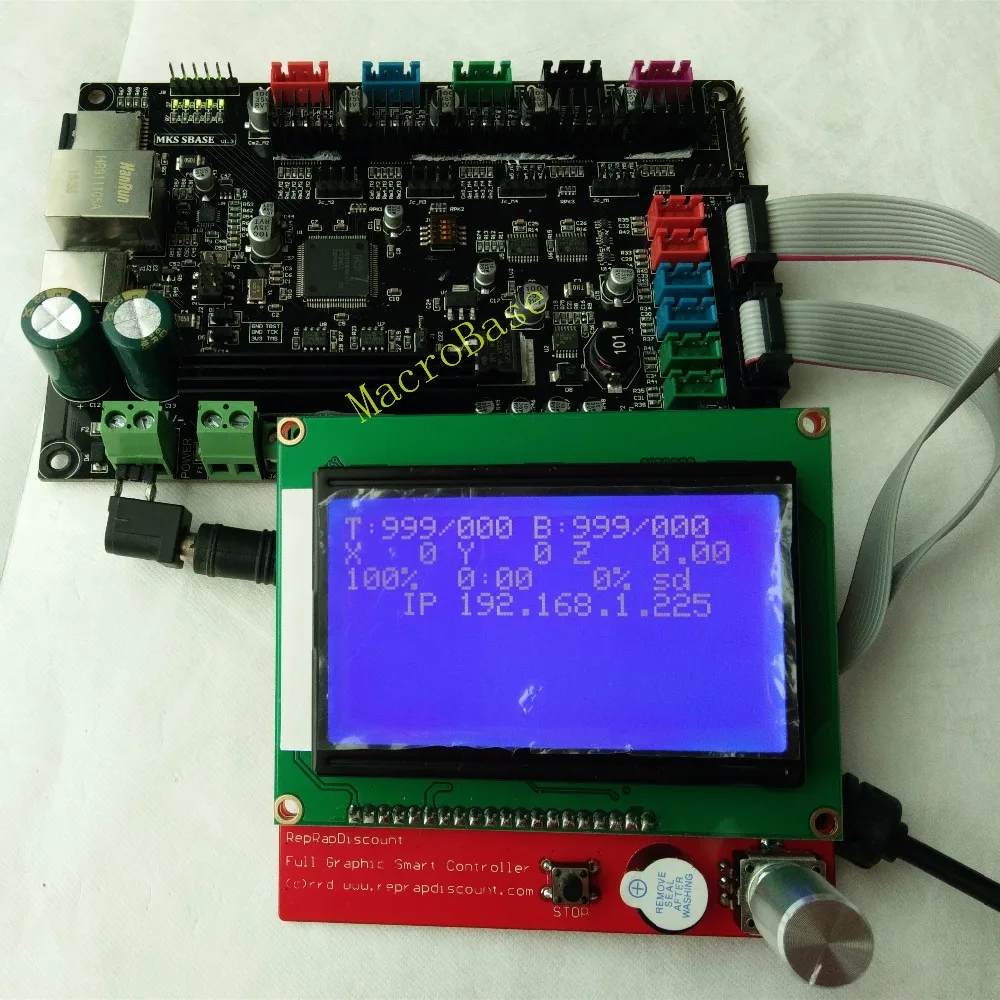

Fast Sale 3d printer MKS SBASE V1.3 smoothieware mother card all in 1 board include Reprapdiscount controller Full Graphic lcd12864 panel

Fast Sale 3d printer MKS SBASE V1.3 smoothieware mother card all in 1 board include Reprapdiscount controller Full Graphic lcd12864 panel comparison sale Rating: 3.9 out of 5

Best Comparison Product Sale Collections Choice provide comparison sale,Keyboard Fast Sale 3d printer MKS SBASE V1.3 smoothieware mother card all in 1 board include Reprapdiscount controller Full Graphic lcd12864 panel. Get Discount Now! Only US $53.11/piece at this time. Hurry buy Now before back to normal price! Normal price US $55.90 or you can Check price now. Dont waste your time. Buy Now only in MacroBase Store Trusted Seller Store!

If it will just sabotage your job and will certainly not offer you the kind of high quality that you need in the goods, you don't need less costly goods. With the greater price you can be sure that your cash deserves costs in this thing...Name: Smoothieboard MKS SBASE V1.3 + LCD12864 Kits Packing List 1pcs * MKS SBASE V1.31pcs * LCD128641pcs * USB2pcs * Flat CableFeatures

• Support highly modular open source firmware Smoothieware. Easy to edit config.txt file. No complicate firmware editing necessary.
• Fully supports network functionality. Besides the regular USB connection an Ethernet network cable can be connected directly to a network for browser control. Board IP address can be configure in config.txt.
• Setcurrent directly on config ,protect driver or potentiometer from getting burned when adjust the current.
• This circuit board with high-quality 4-layer and better heatsink.
• Using a dedicated power supply chip, stably ensure power output.

(Please note that MKS SBASE cant work with OLED12864 and LCD2004 display.)

​

More features as following

Wiring

MKS SBASE Size

MKS SBASE PIN

How to use

1.Copy “firmware.bin” and “config” from config file to SD card (SD smaller than 64Gb).
Need to change config name .

For example:

Change into

2. Adjust config.txt according to the configuration .

3.Refer to MKS-SBASE PIN , make correction connection. Such as stepper motor ,endstops.

4.Plug the SD card to the board, after power on, it will automatic update .

5.If connect computer with USB, need to install the driver (Refer to below specification ).

Install the Driver

First, you should upload the zip file.

Then, plug the USB to computer . Next, enter device manger .

Then will turn up COM after install successfully.

Download Firmware and Update

Copy configuration (including firmware.bin and config.txt) to SD card, insert to the board and power on, it will automatic update .

After successful updated, the file name will turn into firmware.cur.

How to Adjust Driver Current. Caution! Please mind the power polarity and drivers direction. Please don’t put the drivers or motors on/off while power on. Please disconnect all motors when adjust driver current.DRV8825I= vref *2, default 0.65A and 1.3A,Max 2.5A. Following picture shows how to check the Vref.
