Best Comparison Product Sale Collections Choice provide Tablet PC,RC Copters,Laptops Fast Promotion Mini Tiny QX80 80mm Carbon FPV Brushed Indoor RC Quadcopter DIY RTF Assemble Kit H107 Flight Control 5.8G 25mW Camera F19032-B/C. Get Discount Now! Only US $41.51/piece at this time. Hurry buy Now before back to normal price! Normal price US $48.27 or you can Check price now. Dont waste your time. Buy Now only in JMTTOP Trusted Seller Store!

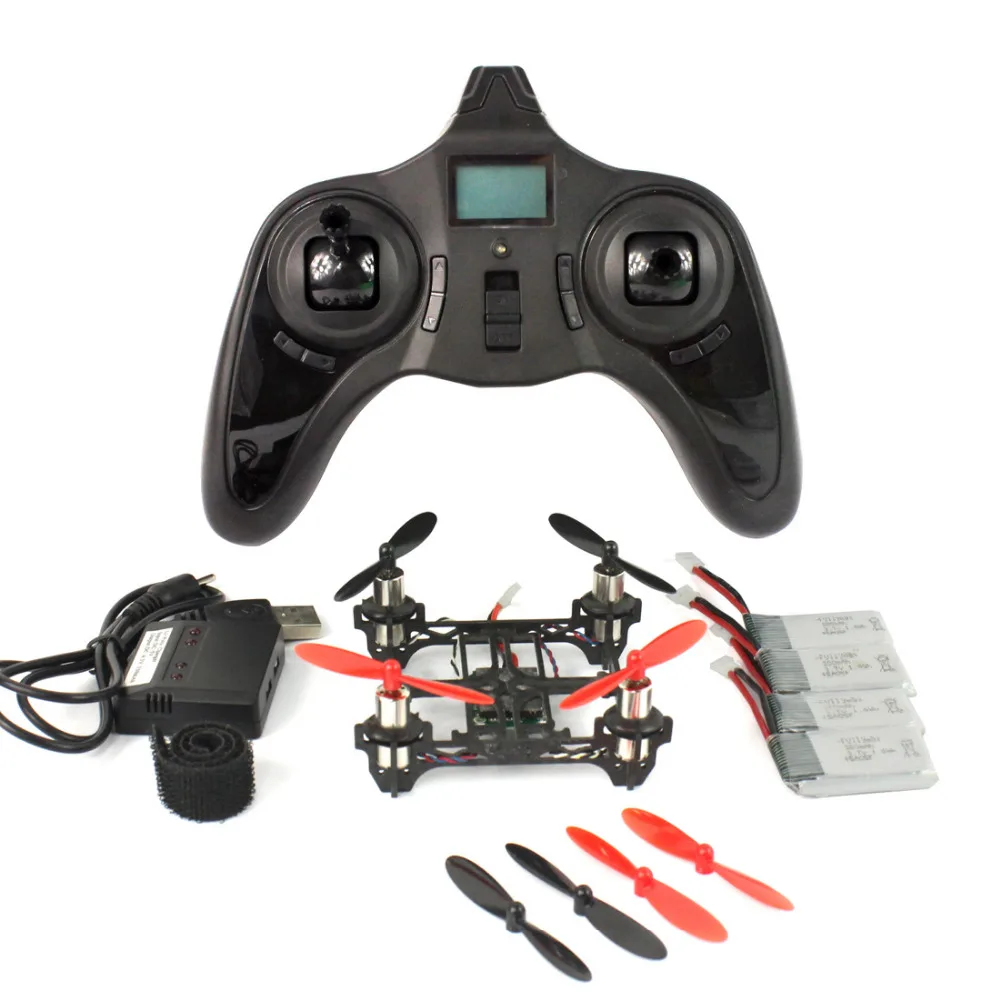

Package included:
1x Super Light Tiny QX80 80mm Mini 4-Axle Carbon Fiber Frame
4x 1S 3.7V 8520 8.5x20mm Mini Coreless Motor
1x Hubsan H107-A34 Receiver
1x Hubsan H107C-19 4-Channel 2.4GHz Transmitter
2x Hubsan H107-A35 Propeller
4x H107-A24 Battery
1x 4 in 1 3.7V Lipo Battery Charger USB
1x Cable ties
Package included:
1x Super Light Tiny QX80 80mm Mini 4-Axle Carbon Fiber Frame
1x 5.8G 25mW 32CH Mini Tiny 520TVL Camera with AV Transmitter
4x 1S 3.7V 8520 8.5x20mm Mini Coreless Motor
1x Hubsan H107-A34 Receiver
1x Hubsan H107C-19 4-Channel 2.4GHz Transmitter
2x Hubsan H107-A35 Propeller
4x H107-A24 Battery
1x 4 in 1 3.7V Lipo Battery Charger USB
1x Cable ties
Ultra-small volume one machine integrated 5.8G 25MW 32CH Transmitter and 520TVL camera, has good gain mushroom antenna welding, suitable for indoor Coreless Racing Drone using. With the use of indoor Racing Drone in the case of 1S lithium power supply without boost module.
Weighing only 5 grams.
Note: DIP switch 6 is NTSC / PAL video system switch
Specifications:
- Weight:5g
- Operating voltage: 3.3v ~ 4.5v
- Working current: 140ma @ 3.7v
- Video output: PAL /NTSC optional
- Frequency: 5.8G 32CH
- Camera: 520TVL Resolution
- Effective pixels: PAL = 720 (H) x576 (V) NTSC=720(H)x480(V)
- Sensitive chip: 1/4 inch HD Color CMOS
- Lens angle: H: 120 ° / V: 100 °
- Antenna: right-handed polarization
Specification:
- Brand Name QX80
- Wheelbase: 80mm
- It is 1.5mm full carbon structure, with four motor protector, strong resistance fried It weighs just 8 grams.
- For indoor brushed thruogh motor
- Better protect Four Motors
- Strong resistance to blast, offers perfect hardness
Battery: 3.7v 380mAH battery
Flight Time: about 8-11 mins
Charging: USB ( Car Device/PC/Mobile Phone Charger can work), Charging time: about 40 mins.
Frequency: 2.4Ghz
Channel: 4
Feature:
6-Axle Flight Control System, Adjustable the sensitivity of Gyro, ultra-stable flight; With a good durability and lightweight frame, Stun flip (left, right, front and rear); Indoor and outdoor flight ability.
01) Simple to bind requency, connected battery and put the quadcopter on a level surface, then open the remote control to bind frequency.
Note: If the remote control or quadcopter is accidentally turned off after the frequency has been binded, it must be re-binded. Turn off the Remote Controller and Quadcopter, and then repeat the frequency steps.
Tip: support multiple simultaneous play. The Remote Controller will bind frequency automatically with nearest Quadcopter, NO interference with others
02) When the quadcopter is off-set, we can adjust it by calibration.
(Clibrated when the offset is large, or fine-tuned when the offset is small), we can adjust it by calibration.
Hold the throttle stick to the full down position and hold the rudder stick to the lower right position. Then more the aileron stick quickly left-right-left-right until the two head lights blink. The blinking of the lights signal a successful recalibration. This calibration will fix any drifting off in a random direction when doing level yaw turns.
PS: If the Quadcopter still drifts to one side, you can set it on a level surface and shim the side that it drifts to with a few sheets of paper (the number of sheets will vary depending on the amount of drift), so it can calibrate the accelerometers with a level offset angle.
3) Trim
When the quadcopter has some slight offset or rotation, we can calibrate it by trim it
To the Left /Right Drift: Press the Ailerom Trim
To the Forward/ Backward: Press the Elevator Trim
To the Left/Right Rotation or Yaw : Press the Rudder Trim
Note: Please press a few times to adjust so far.
4) Expert Flight Mode
Expert Flight Mode is for experienced players. Under this mode, The sensitivity is highest in every channel, the reaction is most sensitive
Press the Elevator stick to activate Expert Mode (The Quadcopter and Transmitter must both to be on), Two beeps indicate Expert Mode; One Bee indicates Normal Mode
The LCD will display EXPERT and the green LED will blink red and green when in Expert Mode.
05) Aerial Flip
The Flip maneuver will only work in Expert Mode. Use the Elevator stick to enter Expert Mode.
Left Flip: Push the Aileron stick fully to the right and then quickly push it fully to the left. Release the stick to the center position after the flip.
Right Flip: Push the Aileron stick fully to the left and then quickly push it fully to the right. Release the stick to the center after the flip
Forward Flip: Pull the Elevator stick backward and then quickly push it forward. Release the stick to the center after the flip
Backward Flip: Push the Elevator stick forward and then quickly pull it backward. Release the stick to the center after the flip.
6) Propeller installing
The power line is rear, The propellers of upper left and diagonal are CCW, The Propellers of upper right and diagonal are CW.
The Quadcopter will not fly ,and will flip and crash if the propellers are not installed correctly.
