Big Stock Deals Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD 5V/2A BEC Current Sensor for RC Drone For RC Multicopter

Big Stock Deals Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD 5V/2A BEC Current Sensor for RC Drone For RC Multicopter comparison sale Rating: 3.8 out of 5

Best Comparison Product Sale Collections Choice provide comparison sale,Keyboard,Mini PC Big Stock Deals Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD 5V/2A BEC Current Sensor for RC Drone For RC Multicopter. Get Discount Now! Only US $36.81/piece at this time. Hurry buy Now before back to normal price! Normal price US $38.75 or you can Check price now. Dont waste your time. Buy Now only in Flytoys Store Trusted Seller Store!

No question, this is an actual product that gives lots of comforts along with profitable for you. Equally as you will obtain a fortune, this item is able to provide a car that needs to be really fascinating for you. In selecting this goods, you could do numerous considerations that are presented in the brochure. The product brochure you obtain is absolutely provide a recommendation for those of you who intend to locate the goods you desire.

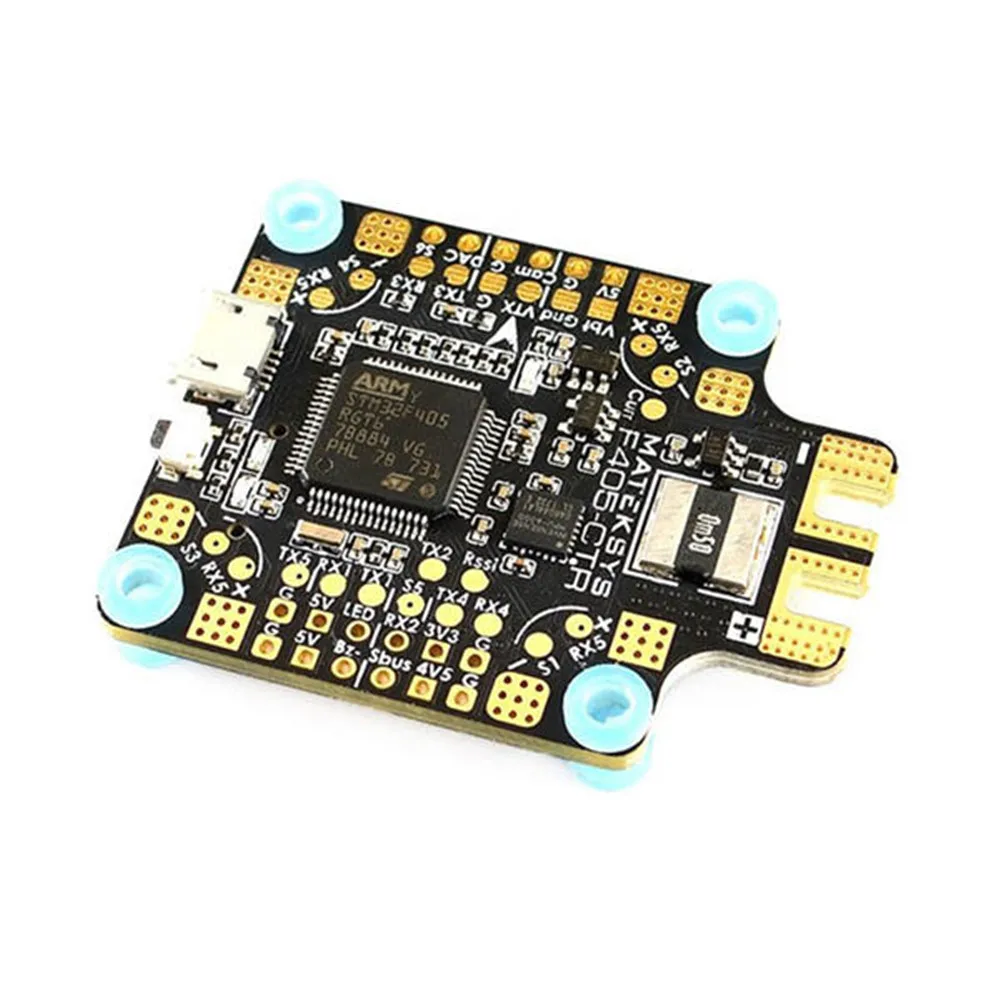

Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD 5V/2A BEC Current Sensor for RC Drone

Features:

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)6x PWM / DShot outputs without conflict5x UARTs1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)1x pair I2C1 pads1x Side-press button for BOOT(DFU) mode

Specifications:
Brand name: Matek Systems
Item name: BetaFlight F405-CTR
Size: 36x46mm PCB with 30.5mm mounting holes
Weight: 10g

FC Specifications: MCU: 168MHz STM32F405 IMU: MPU6000 accelerometer/gyro (SPI) Baro: BMP280 (I2C) OSD: BetaFlight OSD w/ AT7456E chip Blackbox: MicroSD card slot (SD/SDHC) VCP, UART1, UART2, UART3, UART4, UART5 Built in inverter for SBUS input (UART2-RX) PPM/UART Shared: UART2-RX SoftSerial on TX2, S5 or S6 optional Camera control on S6 or DAC optional Smartaudio & Tramp VTX protocol supported WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes PDB Specifications:Input: 6~30V (3~6S LiPo) w/TVS protection PDB: 4x30A (Max.4x46A), 6 layers*2oz copper PCB BEC: 5V 2A cont. (Max.3A) LDO 3.3V: Max.300mA for Spektrum RX Current Sensor 184A (Scale 179) Battery Voltage Sensor: 1:10 (Scale 110)
package included:
1x Matek Systems BetaFlight F405-CTR
4x Rubycon ZLH 35V/470uF (Low ESR)
6x silicon grommets M4 to M3
1x FR4 PCB Plate 36*36*1mm
