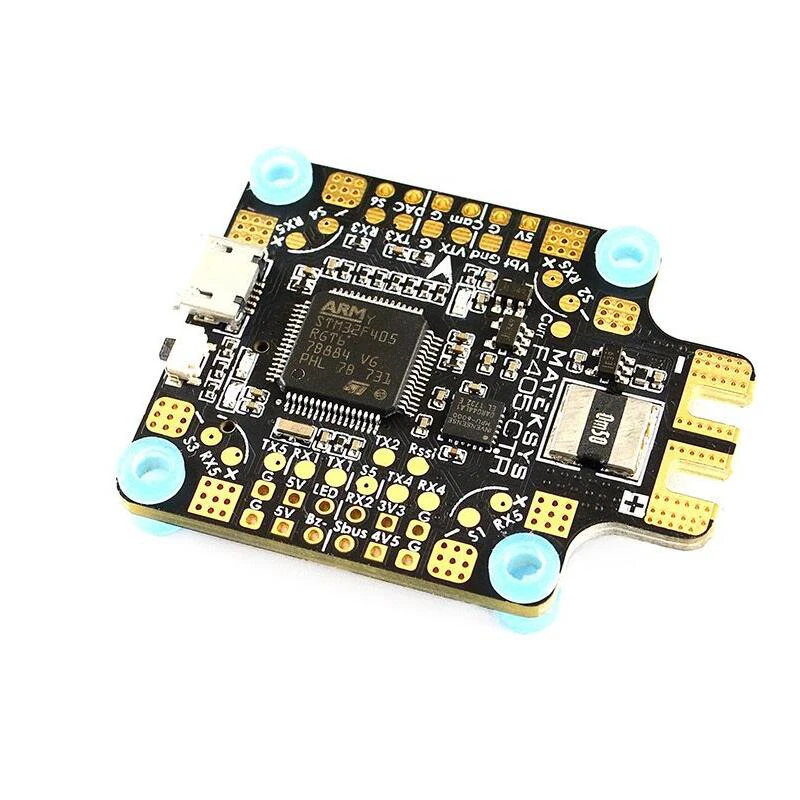

Terrific Gift Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD 5V/2A BEC Current Sensor for RC Drone For RC Multicopter

Terrific Gift Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD 5V/2A BEC Current Sensor for RC Drone For RC Multicopter comparison sale Rating: 4.8 out of 5

Best Comparison Product Sale Collections Choice provide Mini PC,Smartphone Terrific Gift Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD 5V/2A BEC Current Sensor for RC Drone For RC Multicopter. Price at this time US $38.88/piece. Check price now to get discount! Dont waste your time. Buy Now only in Readytosky Store Trusted Seller Store!

Great goods could enhance the high quality of your life. Eligible to be purchased. Economical price and cost-free delivery. Allow's buy prior to costs climb.

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)6x PWM / DShot outputs without conflict5x UARTs1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)1x pair I2C1 pads1x Side-press button for BOOT(DFU) mode ​FC Specifications

• MCU: 168MHz STM32F405
• IMU: MPU6000 accelerometer/gyro (SPI)
• Baro: BMP280 (I2C)
• OSD: BetaFlight OSD w/ AT7456E chip
• Blackbox: MicroSD card slot (SD/SDHC)
• VCP, UART1, UART2, UART3, UART4, UART5
• Built in inverter for SBUS input (UART2-RX)
• PPM/UART Shared: UART2-RX
• SoftSerial on TX2, S5 or S6 optional
• Camera control on S6 or DAC optional
• Smartaudio & Tramp VTX protocol supported
• WS2812 Led Strip : Yes
• Beeper : Yes
• RSSI: Yes

PDB Specifications

• Input: 6~30V (3~6S LiPo) w/TVS protection
• PDB: 4x30A (Max.4x46A), 6 layers*2oz copper PCB
• BEC: 5V 2A cont. (Max.3A)
• LDO 3.3V: Max.300mA for Spektrum RX
• Current Sensor 184A (Scale 179)
• Battery Voltage Sensor: 1:10 (Scale 110)

• 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
• 6x PWM / DShot outputs without conflict
• 5x UARTs
• 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
• 4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
• 1x pair I2C1 pads
• 1x Side-press button for BOOT(DFU) mode
• 36x46mm PCB with 30.5mm mounting holes
• 10g

• w/ 1x Rubycon ZLH 35V/470uF (Low ESR)
• w/ 6x silicon grommets M4 to M3
• w/ 1x FR4 PCB Plate 36*36*1mm

package included: 1x Matek Systems BetaFlight F405-CTR4x Rubycon ZLH 35V/470uF (Low ESR)6x silicon grommets M4 to M31x FR4 PCB Plate 36*36*1mmDetailed Images
