Cool Deals HB64 64mm 1S Brushless RC FPV Racing Drone BNF W/ F3 OSD 5A BLHeli_S Dshot 25mW 48CH 600TVL FS-RX2A Receiver Mini Multirotor

Cool Deals HB64 64mm 1S Brushless RC FPV Racing Drone BNF W/ F3 OSD 5A BLHeli_S Dshot 25mW 48CH 600TVL FS-RX2A Receiver Mini Multirotor comparison sale Rating: 4.7 out of 5

Best Comparison Product Sale Collections Choice provide RC Cars,Mini PC,Steampunk Watches,RC Copters Cool Deals HB64 64mm 1S Brushless RC FPV Racing Drone BNF W/ F3 OSD 5A BLHeli_S Dshot 25mW 48CH 600TVL FS-RX2A Receiver Mini Multirotor. Price at this time US $127.99/piece. Check price now to get discount! Dont waste your time. Buy Now only in EACHINE Store Trusted Seller Store!

Good
Specification:

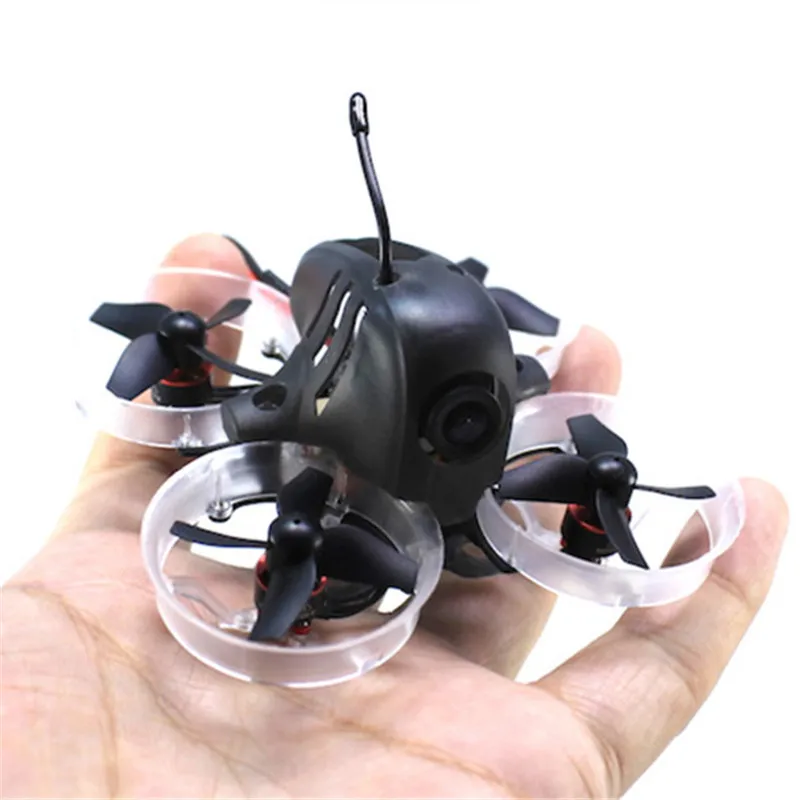

Item name: HB64 brushless racing drone
Wheelbase:64mm
Frame structure: true X
Bottom plate: 1mm thickness, 3K carbon fiber
Weight: <24g (without battery)
Flight weight: <30g (with battery)
Flight time: 3-4mins (260mAh battery)
Flight controller: F3, built-in OSD
ESC: 5A BLHeli_S Dshot
Receiver: FS-RX2A
Motor: D0603 16000KV
Propeller: 31mm 4-blade (4*black, 4*yellow)
VTX+camera: 25mW 48CH 600TVL 120°
battery: 1S 3.85V 260mAh/ 250mAh 30C

F3 flight controller:
Item name: TF3-OSD
Size: 20*20mm
Mounting hole: 16*16mm, 2mm hole diameter
Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: SPI sensor MPU-6000
Firmware: Betaflight_3.x.x_OMNIBUS
Power supply: 1S
Built-in 5V/0.5A BEC
Built-in BF OSD
Built-in LC filter
Support programmable LED
Supports BLheli suite ESC programme
With buzzer port

SBUS ordSM receiver input, please configurate RX3 as input interface.forDSM receiver powered from 3.3VSBUS and PPM from 5V
5A BLHeli_S Dshot ESC:
Size: 20*22mm
Mounting hole: 16*16mm, 2mm hole diameter
Firmware: BLHeli_S 16.6
Continuous current: 5A
Burst current: 6A (5s)
Power supply: 1S lipo
Support Dshot150/300/600, PWM, Oneshot125, Multishot

D0603 motor:
Item name: D0603
KV: 16000KV
Stator diameter: 6mm
Stator height: 3mm
Shaft diameter: 1mm
Bearing: N/A
Working voltage: 1S
Max thrust: 19-26g (56mm 2-blade BN props)
Weight: 1.6g

VTX+camera:
Output power: 25mW
Camera resolution: 600TVL,120°
Channel: 48CH
Video system: PAL/ NTSC
Antenna: 3DB hose antenna
Built-in OSD wiring port

Battery:
Item name: HV-250/260-30C
Capacity: 250/260mAh
Voltage: 1S, 3.85V
Continuous Discharge Rate: 30C
Connector: PH2.0-2P
Weight: 6.5-6.9g

Notes:
-this version is BNF version, it comes with FS-RX2A Receiver.
-the 250/260mAh battery will be sent according to the goods supply, the 260mAh battery will be sent firstly,
if 260mAh battery in insufficient supply, we will sent the 250mAh battery.

Pacakge included:
1x HB64 frame kit
1x F3 flight controller
1x 5A BLHeli_S Dshot ESC
4x D0603 16000KV motor
1x 25mW VTX+camera
1x FS-RX2A Receiver
1x 1S 250/260mAh 30C battery
4x black BL31 4-blade propeller
4x yellow KK31 3-blade propeller
1x L style USB adapter plate
1x propeller puller
