Cool Limited High Quality Eachine Wizard X220 FPV Racer Blheli_S Naze32 6DOF 5.8G 48CH 200MW 700TVL Camera w/ FlySky I6 RTF FPV Drone

Cool Limited High Quality Eachine Wizard X220 FPV Racer Blheli_S Naze32 6DOF 5.8G 48CH 200MW 700TVL Camera w/ FlySky I6 RTF FPV Drone comparison sale Rating: 5 out of 5

Best Comparison Product Sale Collections Choice provide comparison sale,Mini PC,Mouse Cool Limited High Quality Eachine Wizard X220 FPV Racer Blheli_S Naze32 6DOF 5.8G 48CH 200MW 700TVL Camera w/ FlySky I6 RTF FPV Drone. Price at this time US $393.98/piece. Check price now to get discount! Dont waste your time. Buy Now only in EACHINE Official Store Trusted Seller Store!

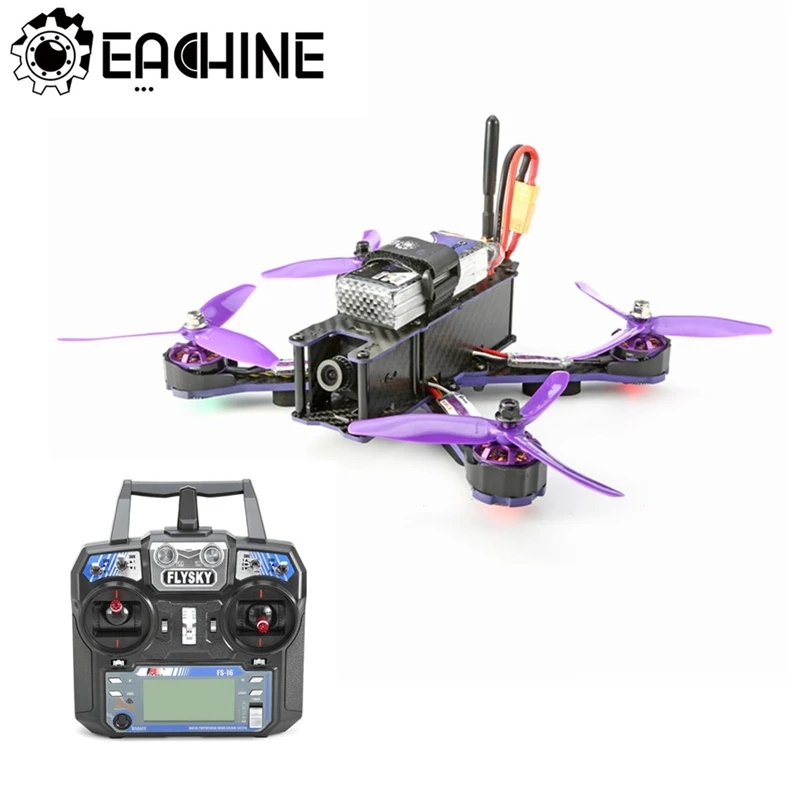

Eachine Wizard X220 FPV Racing Drone Blheli_S F3 6DOF 5.8G 48CH 200MW VTX 700TVL Camera w/ FlySky I6 Remote Control RTF

Note:Both of Mode 1 and Mode 2 come with F3 6DOF flight controller and 2205 2300KV brushless motors now.
Update time: November 17th, 2016
For more information of Eachine Wizard X220, please refer to Banggood BLOG at

Item	Specification	Features
Eachine Wizard X220	Wheelbase: 220mm GMachine arm: 4mm carbon fiber Flying times: 12 minutes Weigh: 484g (with battery) Take off weigh: 535g Package size: 440 x 300 x 100mm Package weigh: 1325g	Compatible with max 5 inch propeller Compatible with 2206, 2208 motor Can be used with 4S/3S battery With Seft-protection function With direction indicator LED Inclined motor base design, fast speed Removable protection motor base
Eachine MN2204 2300KV Motor	KV : 2300 MAX thrust: 440g Length: 32.2mm NO.OF cell : 2-4S Diameter : 27.9mm Framework : 12N14P Shaft : 3mm Propeller : 5 inch Weight: 25g
Eachine 20A BLHELI_S ESC	Item name : 20A BLHELI_S ESC Con.Current : 20A Pe,ak Current(10s) : 25A Input Voltage : 2-4S BEC : No Programming : YES Firmware : Blheli_S Weight :7.9g Size(PCB) : 27*12mm
700TVL Camera	Power supply : 3.6-5.5V (powered off TX) Power consumption : 60mA @5V Imager : 1/3” CMOS, 700TVL Angle : 127° diagonal FOV, 110° horizontal FOV FPV tuned light handling System : PAL Lens : 2.8mm IR coated FOV : 127°diagonal 110°horizontal (ideal for fixed camera) Operation temperature : -20 to 70°C Square : 29 X 29 X 23.5mm Lens extrude (LxDia) : 15mm X 14mm Weight : 12g
5.8G 200mw 48ch Transmitter	Item NO.: TS5823S Modulate : Wideband FM Modulate Video Format : NTSC/PAL Output Impedance : 50 Ohm Output Power : 23-24dBm Channel:48 CH Operating Voltage : 7V-24V Supply Current : 190mA Operating Temperature : -10~85℃ Video Ba,nd Width : 0~8.0 MHz Audio Carrier Frequency : 6.5 MHz Video Input Level : 0.8~1.2 Vp-p Video Input Impedance : 75 Ohm Audio Input Level : 0.5~2.0 Vp-p Audio Input Impedance : 10K Ohm Connector: RP-SMA Female (Inner needle) Antenna Connector: RP-SMA Male (Inner hole) Dimension: 40mm x 23mm x 8mm Weight: 7.3g
Flight controller	NAZE32 6DOF REV6
FlySky I6 2.4G 6CH remote control	Channels : 6 ChannelsModel type : Glider/Heli/AirplaneRF range : 2.40-2.48GHzBandwidth : 500KHzBa,nd : 142RF power : less than 20dBm2.4ghz system : AFHDS 2A and AFHDSCode type : GFSKSensitivity : 1024Low voltage warning : less than 4.2VDSC port : PS2; Output:PPMCharger port : NoANT length : 26mm*2 (dual antenna)Weight : 392gPower : 6V 1.5AA*4Display mode : Transflective STN positive type, 128*64 dot matrix VA73*39mm, white backlight.Size : 174x89x190mmOn-line update : yesColor : BlackCertificate : CE0678, FCCModel memories : 20Control range: 500m
Flysky 2.4G 6CH FS-iA6B Receiver	Channel: 6Frequency Range: 2.4055--2.475GHZBa,nd Width Number: 140Transmitting Power: ≤ 20dBmRF Receiver Sensitivity: -105dbm2.4G Mode: The second generation of an enhanced version of the automatic FM digital systemEncoding: GFSKAntenna Length: 26mm * 2 (dual antenna)Input Power: 4.0-6.5V DCDimension: 47 x 26.2 x 15mmWeight: 14.9gColor: Blacki-Bus Interface: YesData Acquisition Interface: YesModel Type: Airplane / Glider / HelicopterCompatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G
Battery	Capacity(mAh) : 1500Cells (s): 3Weight (g): 120Length(mm): 89Width(mm): 19Height(mm): 35Connector: XT60
Kingkong 5040 3-Blade Propeller	Color: purple Quantity: 10 Pairs Mounting Hole: 5mm Weight: 137g Size: 140*140*65 mm

Eachine Wizard X220 .

Package included:
1 x Eachine V-tail 210 FPV Drone1 x Flysky I6 2.4G 6CH remore control1 x Flysky iA6B receiver2 x Eachine MN2204 KV2300 brushless motor CW2 x Eachine MN2204 KV2300 brushless motor CCW4 x Eachine 20A BLHELI_S ESC10 x Kingking 5040 3-blade propeller purple CW 10 x Kingking 5040 3-blade propeller purple CCW1 x NAZE32 6DOF REV61 x 700TVL camera 1 x 5.8G 48CH 200mw transmitter1 x 3S 11.1V 1500mah 25C XT60 battery1 x B3 charger1 x Antenna1 x Battery strap2 x Wrench


















Return:

If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back

Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
